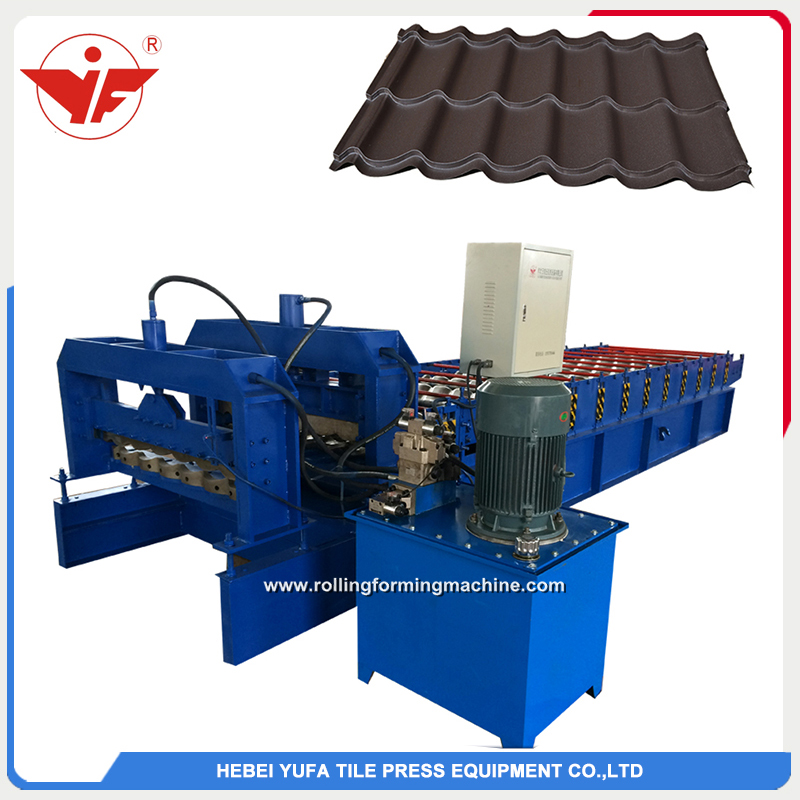

servo motor 1100 step tile forming machine
Short Description:
Description of servo motor 1100 step tile forming machine Different roll forming machine can produce different shapes of glazed roof tiles in various thickness and colors.They are popular because of their low cost, short building period, re-cycle use, and elegant appearance . Working Process of servo motor 1100 step tile forming machine The complete glazed roof tiles roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machine...
Product Detail
FAQ
Product Tags
Description of servo motor 1100 step tile forming machine

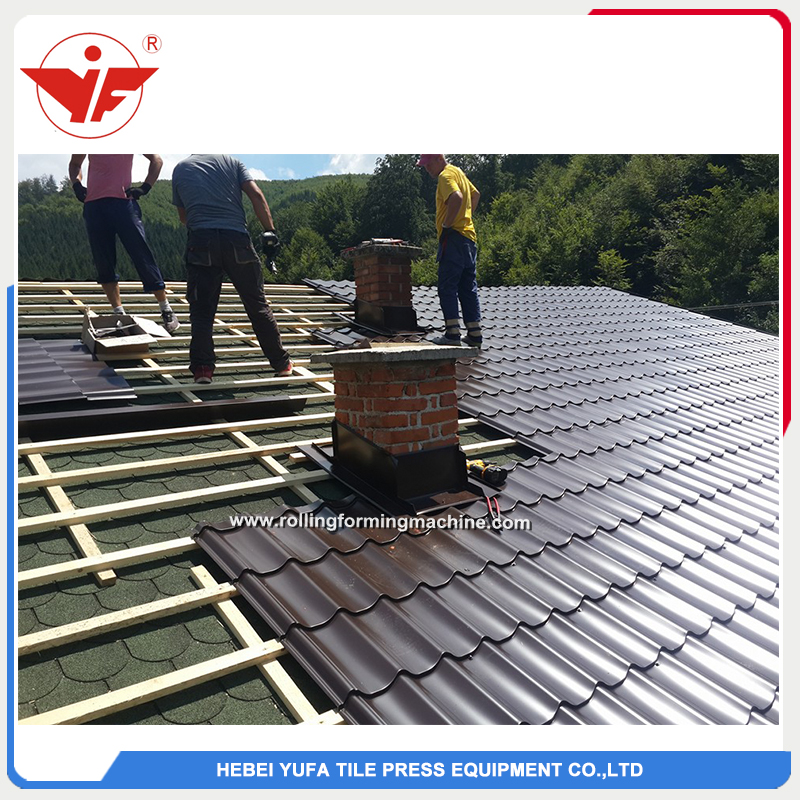

Different roll forming machine can produce different shapes of glazed roof tiles in various thickness and colors.They are popular because of their low cost, short building period, re-cycle use, and elegant appearance .
Working Process of servo motor 1100 step tile forming machine

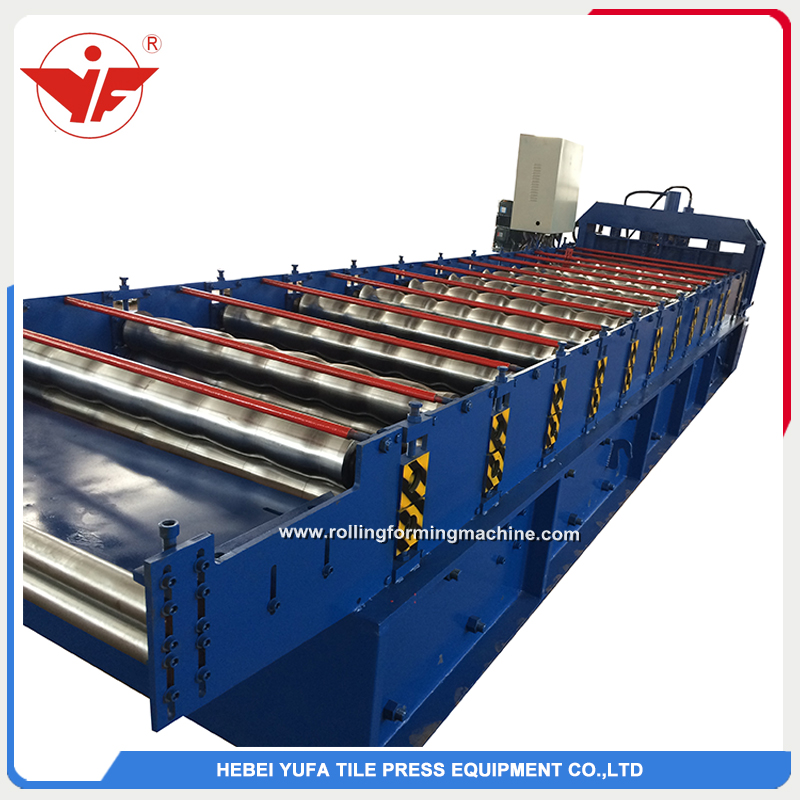

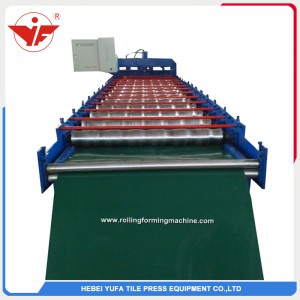

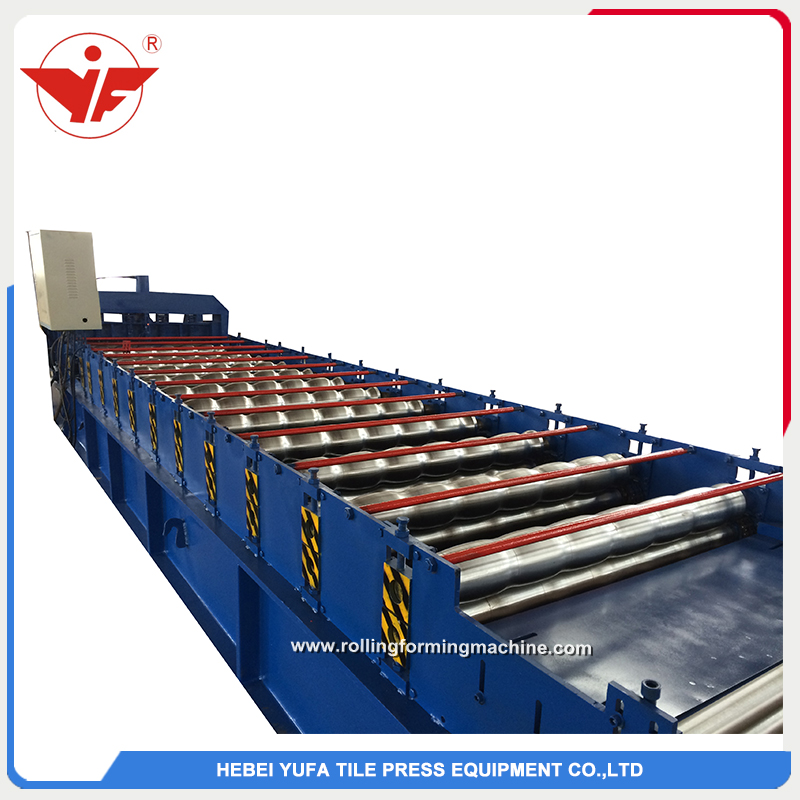

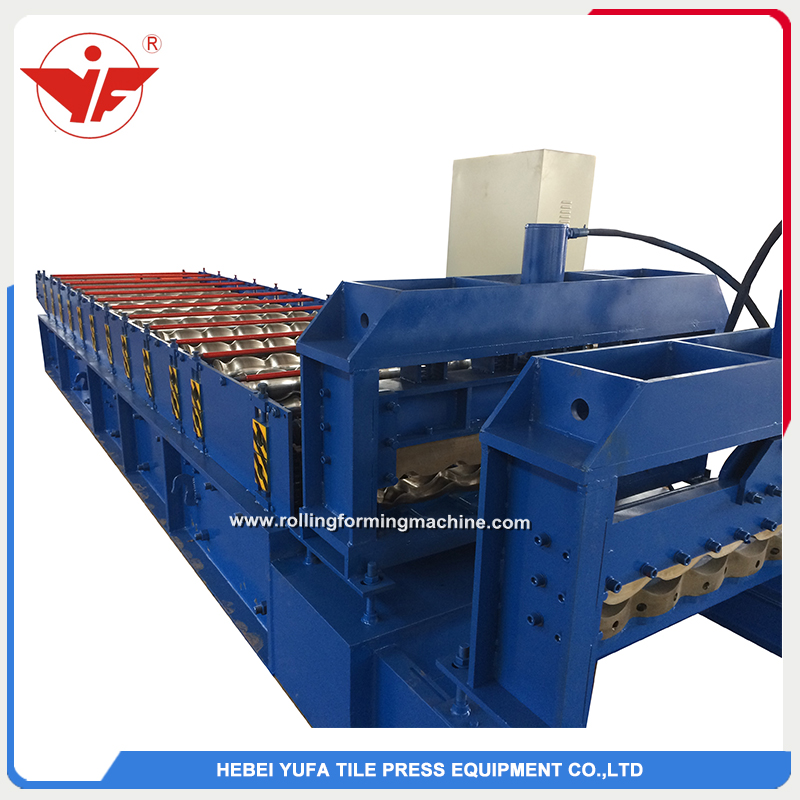

The complete glazed roof tiles roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep the glazed roof tiles accurate.
Machine parameters of servo motor 1100 step tile forming machine
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | 1250 mm | ||
| Thickness | 0.3-0..8 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |

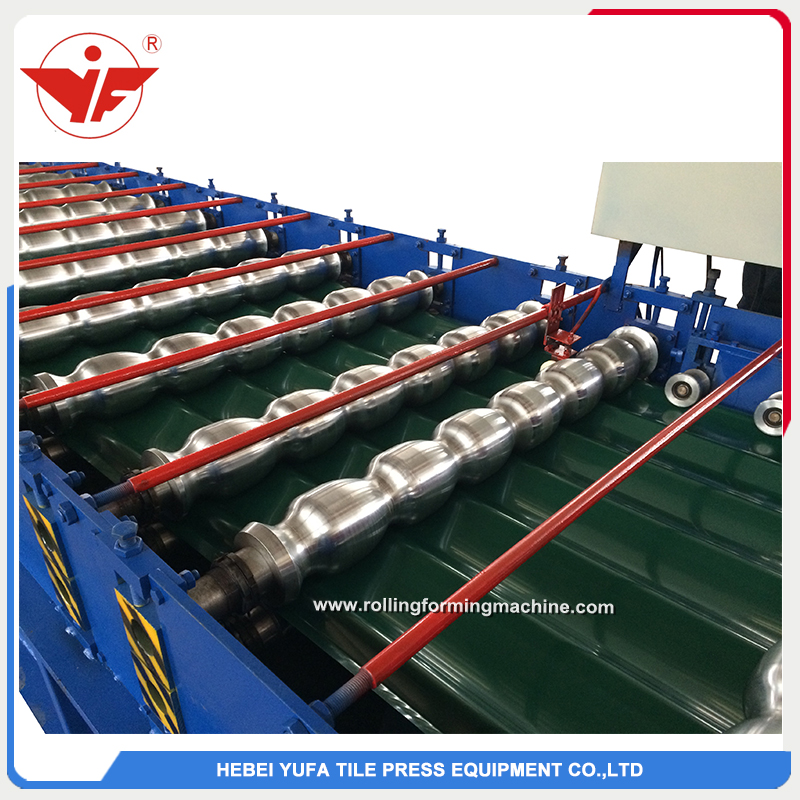

Main body | Roller station | 12 row |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Type | Chinese type | ||
| Frame | 300mm C-beam | ||
| Frame thickness | 16 mm | ||
| Material | Cr 12 | ||

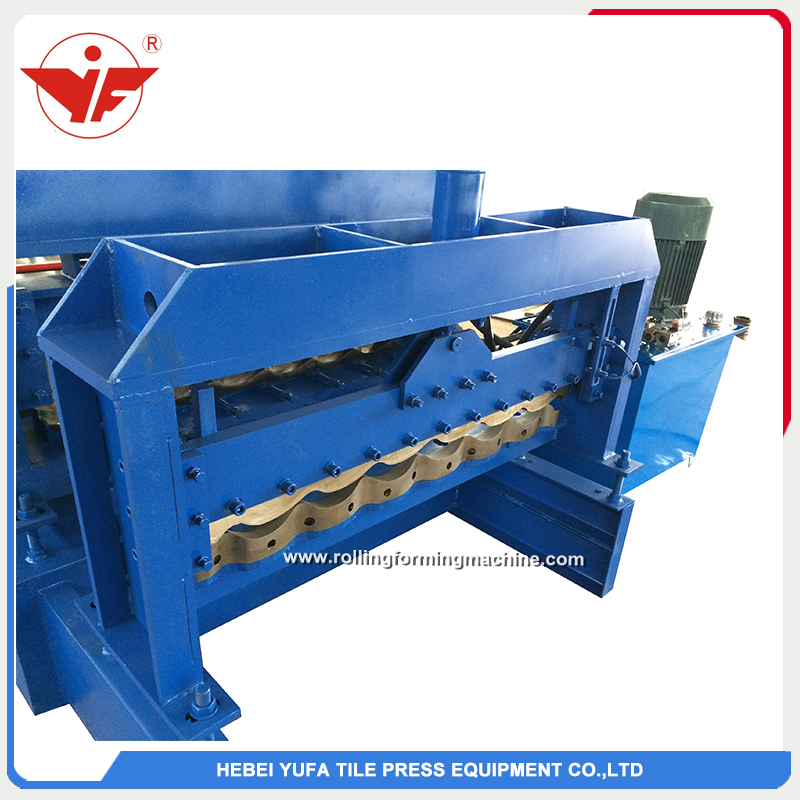

| Operation | Hydraulic automatic | ||
| Working speed | 8-12 m/min | ||
|
4 |
Power | Driving way | Chain 1 inch |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
|
5 |
Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
