Indonesia hot sell 800 step tile roofing panel machine
Short Description:
Description of Indonesia hot sell 800 step tile roofing panel machine Different roll forming machine can produce different shapes of glazed roof tiles in various thickness and colors.They are popular because of their low cost, short building period, re-cycle use, and elegant appearance . Working Process The complete glazed roof tiles roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer con...
Product Detail
FAQ
Product Tags
Description of Indonesia hot sell 800 step tile roofing panel machine

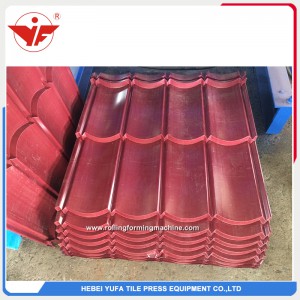

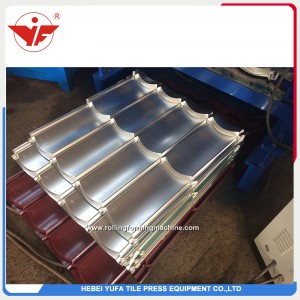

Different roll forming machine can produce different shapes of glazed roof tiles in various thickness and colors.They are popular because of their low cost, short building period, re-cycle use, and elegant appearance .
Working Process

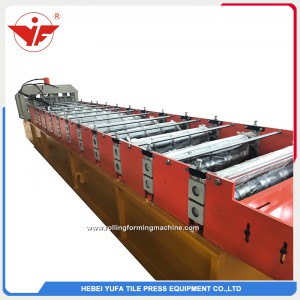

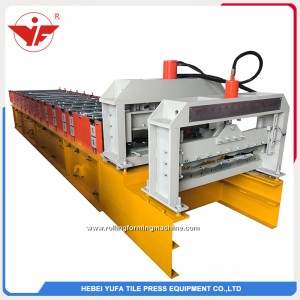

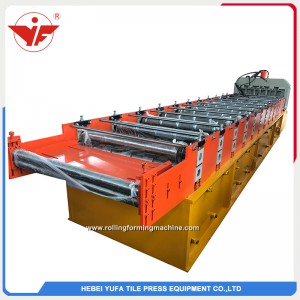

The complete glazed roof tiles roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep the glazed roof tiles accurate.
Machine parameters of Indonesia hot sell 800 step tile roofing panel machine
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Feeding width | 914 mm | ||
| Thickness | 0.3-0.8 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 11 row |
| Diameter of shaft | 75 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Type | Chinese type | ||
| Frame | 300mm H-beam | ||
| Frame thickness | 20 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 8-12 m/min | ||
|
4 |
Power | Driving way | Chain 1 inch |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
|
5 |
Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
1 Q: Are you a manufacturer?
A:Yes, we are manufacture with four branches factory
2. Q: How to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. Our engineer will design it as your needs.
3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.
4. Q: I am new in this field. How could i understand the machine very well
A: Contact with us,24 hours online service side.
5. Q: I receive a lot of quotations, they are big difference, How could i choose?
A:we have many easy ways to solve it. Fox example, we can teach you how to find the Traders out. Just contact us.
6.Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.
7. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
