Egypt hot sell angle machine
Short Description:
Description of Egypt hot sell angle machine ceiling used angle roll forming machine is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework. Working Process The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Ou...
Product Detail
FAQ
Product Tags
Description of Egypt hot sell angle machine
ceiling used angle roll forming machine is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework.
Working Process

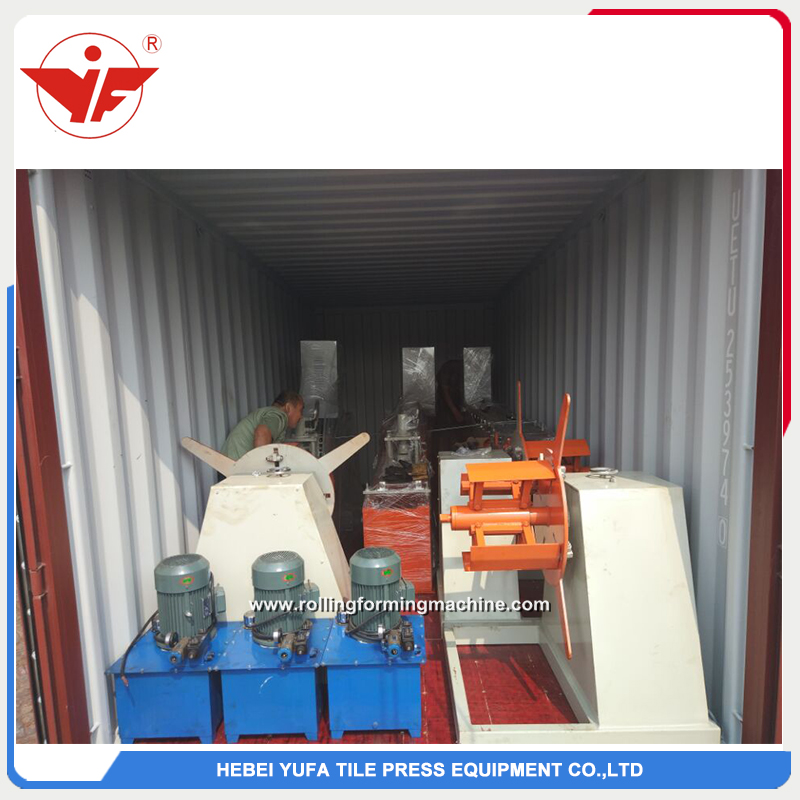

The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep prodcts accurate.
Machine parameters of Egypt hot sell angle machine
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | GI |
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 9 row |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | Cr 12 Mov steel | ||
| Type | Chinese type | ||
| Frame | 300mm C-beam | ||
| Frame thickness | 16 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 10-30 m/min | ||
|
4 |
Power | Driving way | 1 inch chain |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
|
5 |
Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
1 Q: Are you a manufacturer?
A:Yes, we are manufacture with four branches factory
2. Q: How to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. Our engineer will design it as your needs.
3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.
4. Q: I am new in this field. How could i understand the machine very well
A: Contact with us,24 hours online service side.
5. Q: I receive a lot of quotations, they are big difference, How could i choose?
A:we have many easy ways to solve it. Fox example, we can teach you how to find the Traders out. Just contact us.
6.Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.
7. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
