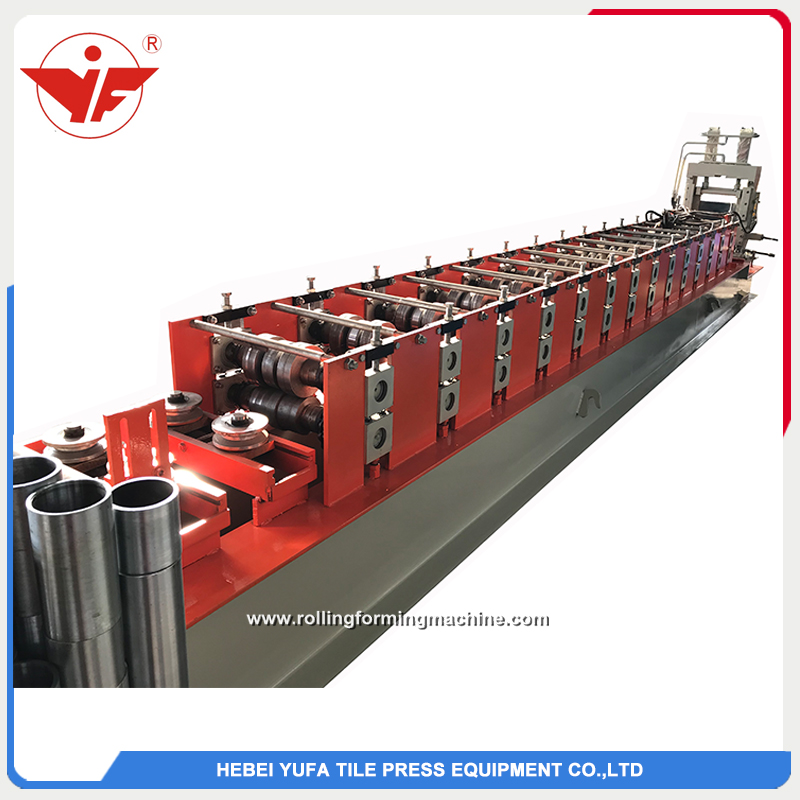

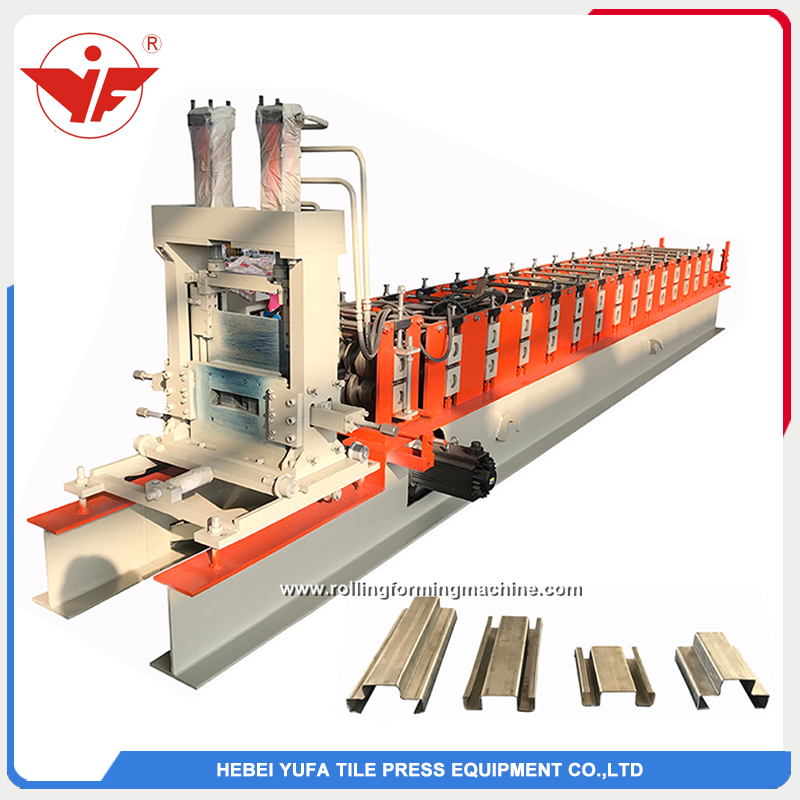

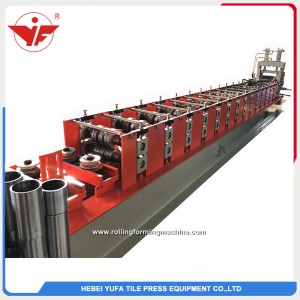

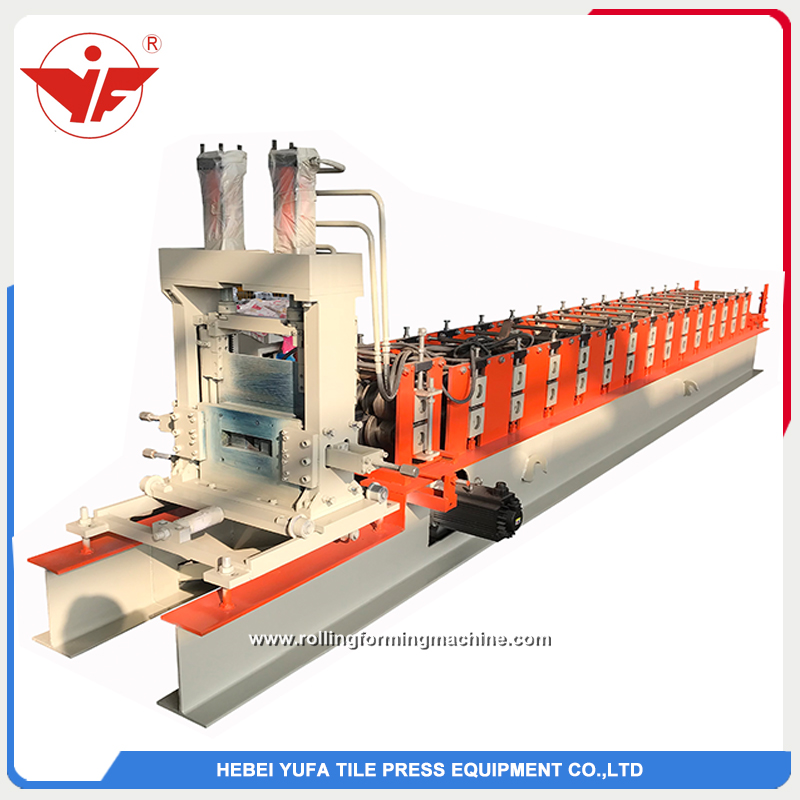

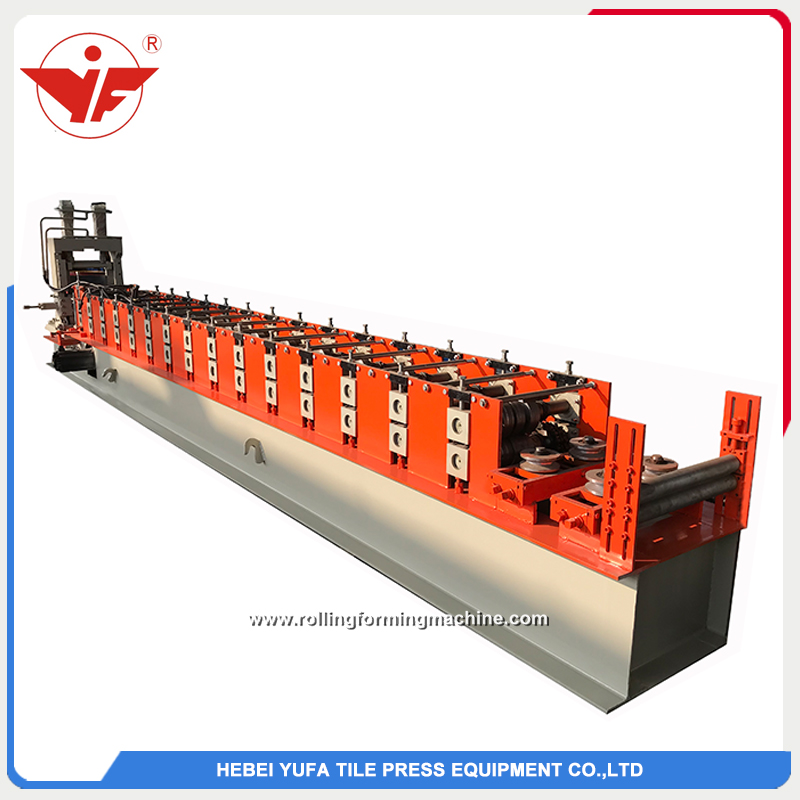

Automatic size changeable omega roll forming machine
Short Description:
Description of Automatic size changeable omega roll forming machine Now our Automatic size changeable omega roll forming machine have been exported to many countries,the most important is that all you need can be customized. Working Process The completeAutomatic size changeable omega roll forming machine includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep purlin accurate. Machine param...
Product Detail
FAQ
Product Tags
Description of Automatic size changeable omega roll forming machine
Now our Automatic size changeable omega roll forming machine have been exported to many countries,the most important is that all you need can be customized.
Working Process
The completeAutomatic size changeable omega roll forming machine includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep purlin accurate.
Machine parameters of Automatic size changeable omega roll forming machine
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | GI |
| Thickness | 2 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 16 row |
| Diameter of shaft | 90mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | Bearing steel | ||
| Type | Chinese type | ||
| Frame | 400mm H-beam | ||
| Frame thickness | 25 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 20-30 m/min | ||
|
4 |
Power | Driving way | 1.5 inch double chain |
| Main motor | 22 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
|
5 |
Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
1 Q: Are you a manufacturer?
A:Yes, we are manufacture with four branches factory
2. Q: How to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. Our engineer will design it as your needs.
3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.
4. Q: I am new in this field. How could i understand the machine very well
A: Contact with us,24 hours online service side.
5. Q: I receive a lot of quotations, they are big difference, How could i choose?
A:we have many easy ways to solve it. Fox example, we can teach you how to find the Traders out. Just contact us.
6.Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.
7. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
