720 floor deck roll forming machine
Short Description:
We are floor deck roll forming machine manufacturer Our company is professional in floor deck field. With best quality and cheapest price wait for u. We have many kinds of floor deck. YF51-342-1025/ YF75-230-690/ YF75-200-600/ YF76-344-688/ YF75-293-880/ YF75-230-690 YF65-185-555/ YF51-200-600/ YF51-226-678/ YF51-253-760/ YF51-250-750/ YF51-240-720 YF51-305-914/ YF50-180-720/ YF35-125-750/ YF51-330-992 And we also have steel truss floor decking machine. weld rebar on the floor deck. We can d...
Product Detail
FAQ
Product Tags
We are floor deck roll forming machine manufacturer
Our company is professional in floor deck field. With best quality and cheapest price wait for u. We have many kinds of floor deck. YF51-342-1025/ YF75-230-690/ YF75-200-600/ YF76-344-688/ YF75-293-880/ YF75-230-690 YF65-185-555/ YF51-200-600/ YF51-226-678/ YF51-253-760/ YF51-250-750/ YF51-240-720 YF51-305-914/ YF50-180-720/ YF35-125-750/ YF51-330-992 And we also have steel truss floor decking machine. weld rebar on the floor deck. We can design floor deck for you if you have drawing or idea.
Open type floor deck machine drawing as u choose
Close type floor deck machine drawing as u choose

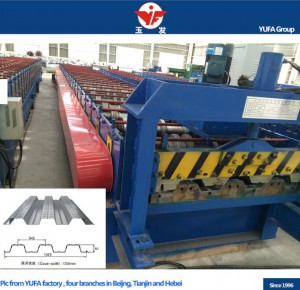

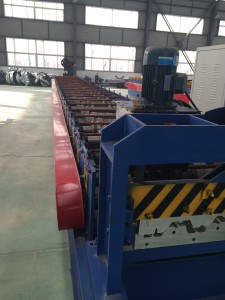

Working flow of 720 floor deck roll forming machine
Floor deck roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic cutter and receiving table.Machine is controled by Delta PLC control system, we also have Mitsibishi PLC for option.
Floor deck roll forming machine Parameters
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | GI |
| Feeding width | As customer need | ||
| Thickness | 0.8-2 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
|
3 |
Main body | Roller station | 24 row |
| Diameter of shaft | 75 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | GCR15 | ||
| Type | Chinese type | ||
| Frame | 400mm H-beam | ||
| Frame thickness | 20 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 8-15 m/min | ||
|
4 |
Power | Driving way | Chain 2 inch |
| Main motor | 11 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
|
5 |
Control box | Electric box | PLC control system, inventer |
| PLC brand | Delta made in Taiwan | ||
| Inverter brand | Delta made in Taiwan | ||
| Language | Chinese and English | ||
1 Q: Are you a manufacturer?
A:Yes, we are manufacture with four branches factory
2. Q: How to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. Our engineer will design it as your needs.
3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.
4. Q: I am new in this field. How could i understand the machine very well
A: Contact with us,24 hours online service side.
5. Q: I receive a lot of quotations, they are big difference, How could i choose?
A:we have many easy ways to solve it. Fox example, we can teach you how to find the Traders out. Just contact us.
6.Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.
7. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
