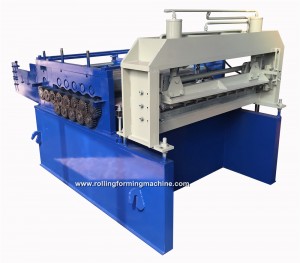

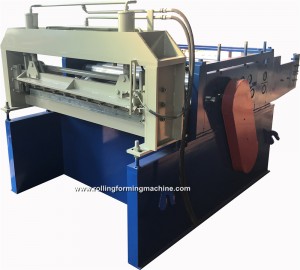

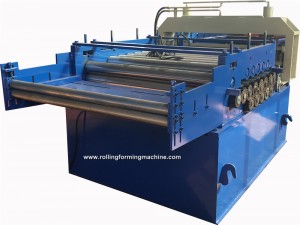

Description of 2000mm width 1.5mm thickness cutting machine to Pakistan
Automatic steel coil piece to piece sheet cutting machine line is using in wholesale sheet business. We use this machine to cut to pieces and sell them to client. This cutting machine can cut length one by one.
There are up 5 and down 6 stations for flatten the material which make coil straightly input to cutting machine. It is using for bring the steel coil running and do not break the surface of steel coil.
Some clients but piece to piece cutting machine for barrel galvanized corrugated sheet roll forming machine. And popular length are 8ft/10ft and 12 ft. Because if they pieces from the steel coil factory, price is very high. So they buy cutting machine for themselves. They can cut any length of roof panel what they need.
Capacity of cutting machine: the normal speed is same with the roof tile roll forming machine. So 8-12m/min. If you need this speed, you can use manual decoiler. If you wanted high speed, machine price will be added and you must choose electric decoiler or hydraulic decoiler. Because the speed is so that that the shaft can not bring the steel coil very well. So the length is not correct.
If you want to know more details of cutting machine, contact us directly.
Remark: if your need other thickness, please check we other type cutting machine
Machine parameters of 2000mm width 1.5mm thickness cutting machine to Pakistan
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI |
| Material width | 2000 mm or customize | ||
| Thickness | 0.3-1.5 mm | ||
|
2 |
Main body | Roller station | Up 5 down 6 row |
| Diameter of shaft | 70 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Type | Chinese type | ||
| Frame | 300mm C-beam | ||
| Frame thickness | 16 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 8-15 m/min | ||
|
3 |
Power | Driving way | 1 inch chain |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
